0456 Series Time-Lag (Slo-Blo?) SMF

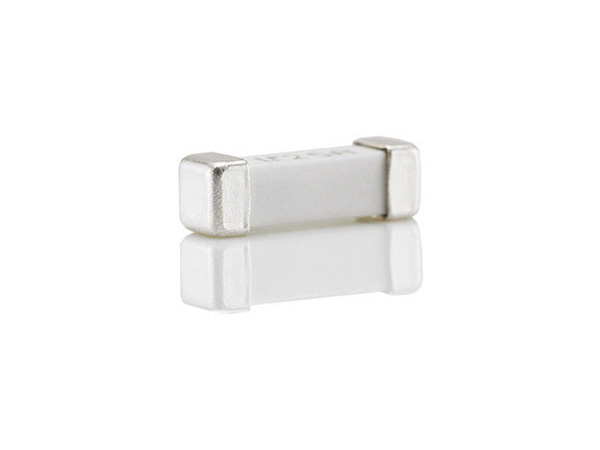

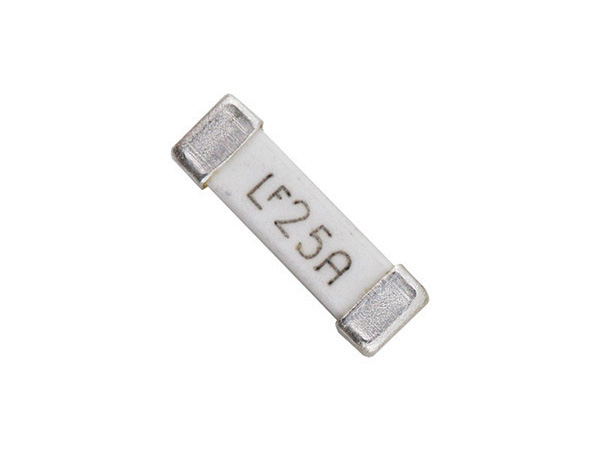

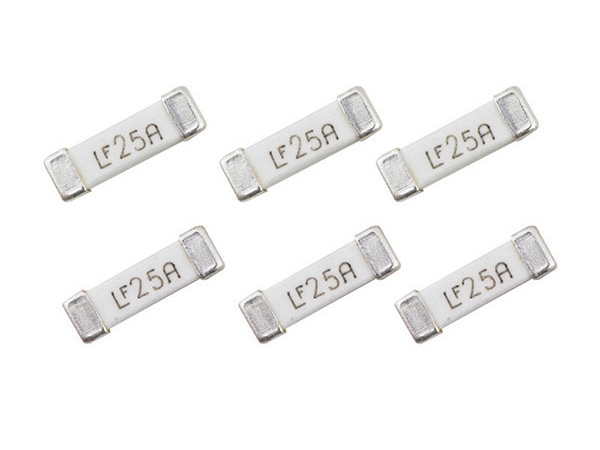

The High Current NANO2? Fuse is a small square surface mount fuse.

  • Brand: Littelfuse
  • Classification: SMD Fuse
  • Voltage: 125V/72V
  • Current: 20A-40A

Description:

The High Current NANO2? Fuse is a small square surface mount fuse that is designed to support higher current requirements of various applications.


Features:

? Surface mount high current fuse

? Fully compatible with lead-free solder alloys and higher temperature profiles associated with lead-free assembly

? RoHS compliant and Halogen Free

? Available in ratings of 20 to 40 Amperes


Applications:

? Voltage regulator module for PC server

? Storage system power

? Cooling fan system for PC server

? Basestation power supply


Ampere Rating
(A)

Amp Code
Max Voltage Rating
(V)
Interruping Rating
Nominal Cold Resistance
(Ohms)
Nominal Melting I2t
(A2sec)
Nom Voltage Drop
(mV)
  20
020.125
100A @ 125VAC
300A @ 65VAC
300A @ 100VDC
1000A @ 32VDC
500A @ 72VDC
  0.00230
  18
  64.7
  25
  025.
  125
100A @ 125VAC
300A @ 65VAC
500A @ 72VDC
1000A @ 32VDC
  0.00192
  45
  68.38
  30
  030.
  125
  100A @ 125VAC
300A @ 65VAC
1000A @ 32VDC
500A @ 72VDC
  0.00132
  81
  69.9
  40
  040.
  72
180A @ 72VDC
600A @ 60VDC
  0.00105
  191
  55
