0805系列貼片保險絲

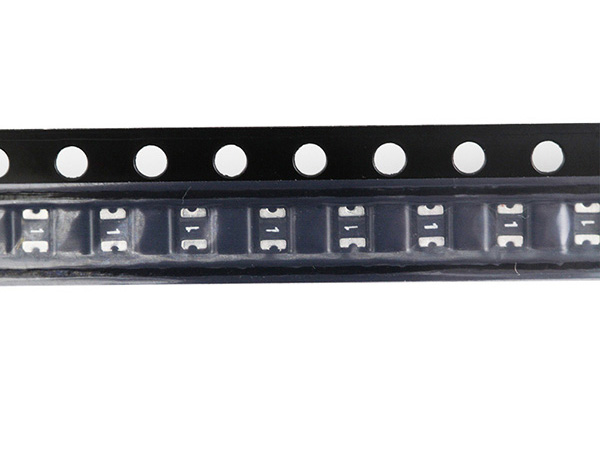

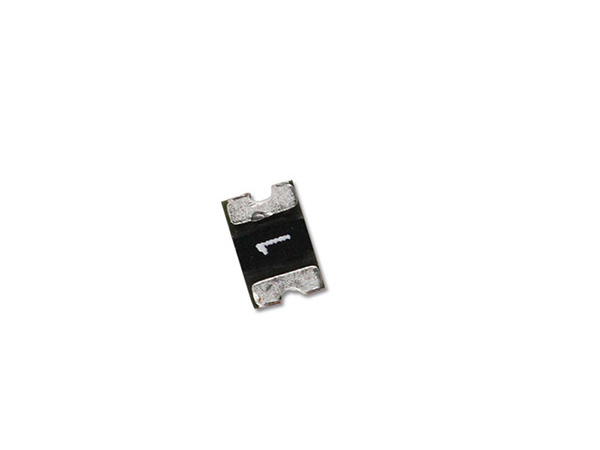

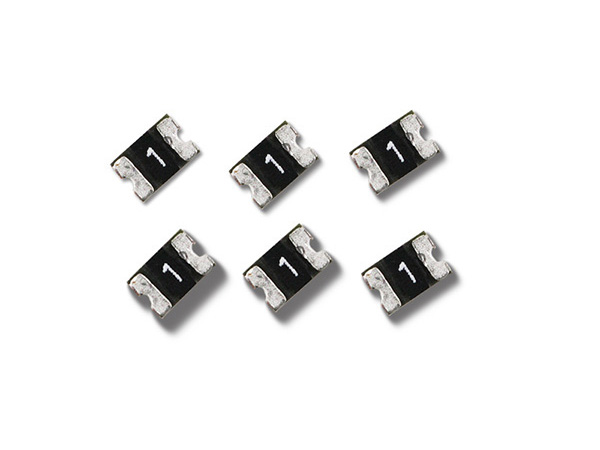

ASMD0805系列保險絲屬貼片型、無鉛、卷盤式包裝的自恢復保險絲，適合自動化貼裝，應用于高密度線路板， 工作溫度：-40~85℃。
- 品牌： 集電通/JDTFUSE
- 分類： 貼片保險絲
- 最大電壓： 6V-16V
- 額定電流： 0.05A-1.5A
ASMD0805規格書
電氣特性（25°C）
Part No. | Vmax (Vdc) | Imax (A) | Ihold @25℃ (A) | Itrip @25℃ (A) | Pd typ. (W) | Maximum Time To Trip | Resistance | ||
Current (A) | Time (Sec.) | Rimin (Ω) | R1max (Ω) | ||||||
| ASMD0805-005 | 15.0 | 100 | 0.05 | 0.15 | 0.5 | 0.5 | 1.50 | 1.5 | 20.0 |
| ASMD0805-005-24V | 24.0 | 100 | 0.05 | 0.15 | 0.5 | 0.5 | 1.50 | 1.5 | 20.0 |
| ASMD0805-010 | 15.0 | 100 | 0.10 | 0.30 | 0.5 | 0.5 | 1.50 | 0.75 | 6.00 |
| ASMD0805-010-30V | 30.0 | 100 | 0.10 | 0.30 | 0.5 | 0.5 | 1.50 | 0.75 | 6.00 |
| ASMD0805-020 | 9.00 | 100 | 0.20 | 0.50 | 0.5 | 8.0 | 0.02 | 0.50 | 3.50 |
| ASMD0805-020-16V | 16.0 | 100 | 0.20 | 0.50 | 0.5 | 8.0 | 0.02 | 0.50 | 3.50 |
| ASMD0805-035 | 6.00 | 100 | 0.35 | 0.75 | 0.5 | 8.0 | 0.10 | 0.20 | 1.20 |
| ASMD0805-035-12V | 12.0 | 100 | 0.35 | 0.75 | 0.5 | 8.0 | 0.10 | 0.20 | 1.20 |
| ASMD0805-050 | 6.00 | 100 | 0.50 | 1.00 | 0.5 | 8.0 | 0.10 | 0.10 | 0.85 |
| ASMD0805-050-12V | 12.0 | 100 | 0.50 | 1.00 | 0.5 | 8.0 | 0.10 | 0.10 | 0.85 |
| ASMD0805-050-16V | 16.0 | 100 | 0.50 | 1.00 | 0.5 | 8.0 | 0.10 | 0.10 | 0.85 |
| ASMD0805-050-24V | 24.0 | 100 | 0.50 | 1.00 | 0.5 | 8.0 | 0.10 | 0.10 | 0.85 |
| ASMD0805-075 | 6.00 | 100 | 0.75 | 1.50 | 0.6 | 8.0 | 0.20 | 0.07 | 0.385 |
| ASMD0805-075-12V | 12.0 | 100 | 0.75 | 1.50 | 0.6 | 8.0 | 0.20 | 0.07 | 0.385 |
| ASMD0805-100 | 6.00 | 100 | 1.00 | 1.95 | 0.6 | 8.0 | 0.30 | 0.04 | 0.230 |
| ASMD0805-100-12V | 12.0 | 100 | 1.00 | 1.95 | 0.6 | 8.0 | 0.30 | 0.04 | 0.230 |
| ASMD0805-110 | 6.00 | 100 | 1.10 | 2.20 | 0.6 | 8.0 | 0.30 | 0.035 | 0.210 |
| ASMD0805-110-12V | 12.0 | 100 | 1.10 | 2.20 | 0.6 | 8.0 | 0.30 | 0.035 | 0.210 |
| ASMD0805-125 | 6.00 | 100 | 1.25 | 2.50 | 1.5 | 8.0 | 0.60 | 0.025 | 0.140 |
| ASMD0805-150 | 6.00 | 100 | 1.50 | 3.00 | 1.0 | 8.0 | 0.50 | 0.015 | 0.130 |
V max = 元件在額定電流下能承受的最大電壓.
I max =元件在額定電壓下能承受的最大電流.
I hold = 在25℃靜止空氣環境中,產品不動作的最大電流.
I trip = 在25℃靜止空氣環境中,最小動作電流.
Pd =在25℃靜止空氣環境中,產品動作狀態下的消耗功率.（推薦閱讀：0805系列貼片保險絲）
Ri min/max =25℃溫度條件下的初始阻值(焊接前).
R1max = 25℃溫度條件下,焊接一小時後的最大阻值.
注意 : 超出指定額定值的操作，可能會導致?lián)p傷和可能產生電弧和火焰.
Model | A | B | C | D | E | |||
Min. | Max. | Min. | Max. | Min. | Max. | Min. | Min. | |
| ASMD0805-005 | 2.0 | 2.3 | 1.2 | 1.5 | 0.35 | 1.1 | 0.2 | 0.1 |
| ASMD0805-005-24V | 2.0 | 2.3 | 1.2 | 1.5 | 0.35 | 1.1 | 0.2 | 0.1 |
| ASMD0805-010 | 2.0 | 2.3 | 1.2 | 1.5 | 0.35 | 1.1 | 0.2 | 0.1 |
| ASMD0805-010-30V | 2.0 | 2.3 | 1.2 | 1.5 | 0.35 | 1.1 | 0.2 | 0.1 |
| ASMD0805-020 | 2.0 | 2.3 | 1.2 | 1.5 | 0.35 | 1.1 | 0.2 | 0.1 |
| ASMD0805-020-16V | 2.0 | 2.3 | 1.2 | 1.5 | 0.35 | 1.1 | 0.2 | 0.1 |
| ASMD0805-035 | 2.0 | 2.3 | 1.2 | 1.5 | 0.35 | 1.1 | 0.2 | 0.1 |
| ASMD0805-035-12V | 2.0 | 2.3 | 1.2 | 1.5 | 0.35 | 1.1 | 0.2 | 0.1 |
| ASMD0805-050 | 2.0 | 2.3 | 1.2 | 1.5 | 0.35 | 1.1 | 0.2 | 0.1 |
| ASMD0805-050-12V | 2.0 | 2.3 | 1.2 | 1.5 | 0.35 | 1.1 | 0.2 | 0.1 |
| ASMD0805-050-16V | 2.0 | 2.3 | 1.2 | 1.5 | 0.35 | 1.1 | 0.2 | 0.1 |
| ASMD0805-050-24V | 2.0 | 2.3 | 1.2 | 1.5 | 0.35 | 1.1 | 0.2 | 0.1 |
| ASMD0805-075 | 2.0 | 2.3 | 1.2 | 1.5 | 0.35 | 1.0 | 0.2 | 0.1 |
| ASMD0805-075-12V | 2.0 | 2.3 | 1.2 | 1.5 | 0.35 | 1.0 | 0.2 | 0.1 |
| ASMD0805-100 | 2.0 | 2.3 | 1.2 | 1.5 | 0.70 | 1.2 | 0.2 | 0.1 |
| ASMD0805-100-12V | 2.0 | 2.3 | 1.2 | 1.5 | 0.70 | 1.2 | 0.2 | 0.1 |
| ASMD0805-110 | 2.0 | 2.3 | 1.2 | 1.5 | 0.70 | 1.2 | 0.2 | 0.1 |
| ASMD0805-110-12V | 2.0 | 2.3 | 1.2 | 1.5 | 0.70 | 1.2 | 0.2 | 0.1 |
| ASMD0805-125 | 2.0 | 2.3 | 1.2 | 1.5 | 0.70 | 1.5 | 0.2 | 0.1 |
| ASMD0805-150 | 2.0 | 2.3 | 1.2 | 1.5 | 0.70 | 1.5 | 0.2 | 0.1 |
