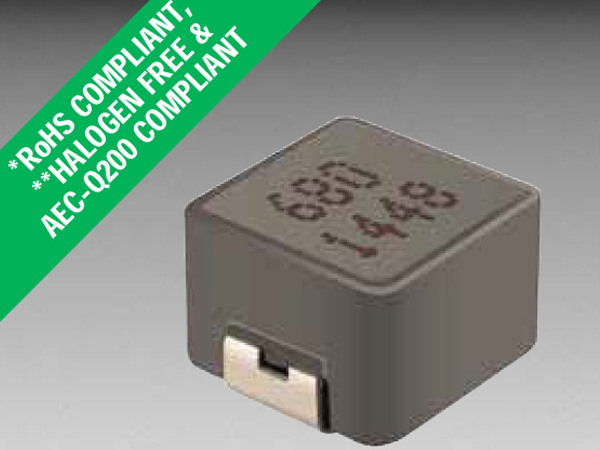

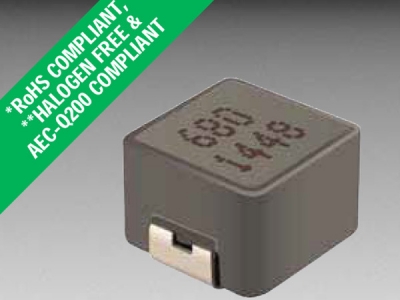

Bourns伯恩斯電感器SRP7050TA系列
Bourns伯恩斯SRP7050TA系列電感器主要材料為羰基粉末鐵芯，漆包銅電線，Sn表面處理端子
- 品牌： Bourns/伯恩斯
- 分類(lèi)： 貼片電感器
Part No. | Inductance @1kHz/1V | Q Min. | SRF Typ. | DCR Typ. | DCR Max. | I rms | I sat | Terminal Type | |
L(μH) | Tol. % | @1kHz/1V | (MHz) | （mΩ） | （mΩ） | (A) | （A） | ||
SRP7050TA-R33M | 0.33 | ±20 | 10 | 100 | 2.5 | 3.0 | 25.0 | 32 | Lead Fream |
SRP7050TA-R40M | 0.40 | ±20 | 10 | 100 | 3.1 | 3.7 | 23.0 | 31 | |
SRP7050TA-R47M | 0.47 | ±20 | 10 | 95 | 3.5 | 3.9 | 22.0 | 30 | |
SRP7050TA-R56M | 0.56 | ±20 | 10 | 80 | 3.6 | 4.2 | 20.0 | 27 | |
SRP7050TA-R60M | 0.60 | ±20 | 10 | 80 | 3.8 | 4.3 | 19.0 | 25 | |
SRP7050TA-R68M | 0.68 | ±20 | 10 | 75 | 4.0 | 4.5 | 18.0 | 24 | |
SRP7050TA-R82M | 0.82 | ±20 | 10 | 70 | 4.6 | 4.9 | 16.5 | 22 | |
SRP7050TA-1R0M | 1.0 | ±20 | 10 | 50 | 6.1 | 6.5 | 15.0 | 20 | |
SRP7050TA-1R2M | 1.2 | ±20 | 15 | 45 | 6.7 | 7.5 | 14.0 | 18 | |
SRP7050TA-1R5M | 1.5 | ±20 | 15 | 43 | 8.6 | 9.0 | 12.0 | 16.5 | |
SRP7050TA-1R8M | 1.8 | ±20 | 15 | 38 | 9.5 | 11.0 | 12.0 | 15 | |
SRP7050TA-2R2M | 2.2 | ±20 | 15 | 30 | 11.2 | 12.0 | 10.0 | 14 | |
SRP7050TA-3R3M | 3.3 | ±20 | 15 | 26 | 19.0 | 20.9 | 8.0 | 12 | |
SRP7050TA-4R7M | 4.7 | ±20 | 15 | 22 | 28.0 | 30.8 | 6.5 | 10 | |
SRP7050TA-5R6M | 5.6 | ±20 | 15 | 20 | 43.5 | 49.0 | 6.0 | 9.0 | |
SRP7050TA-6R8M | 6.8 | ±20 | 15 | 18 | 46.0 | 51.5 | 5.5 | 8.5 | |
SRP7050TA-8R2M | 8.2 | ±20 | 15 | 16 | 56.0 | 63.0 | 5.0 | 8.0 | |
SRP7050TA-100M | 10 | ±20 | 15 | 15 | 60.0 | 69.0 | 4.0 | 7.5 | |
SRP7050TA-150M | 15 | ±20 | 15 | 12 | 81.0 | 92.0 | 3.5 | 6.0 | |
SRP7050TA-220M | 22 | ±20 | 15 | 9 | 140 | 170 | 2.5 | 5.5 | |
SRP7050TA-330M | 33 | ±20 | 15 | 8 | 173 | 200 | 2.0 | 3.5 | |
SRP7050TA-470M | 47 | ±20 | 15 | 8 | 290 | 330 | 1.9 | 2.7 | |
SRP7050TA-560M | 56 | ±20 | 15 | 7 | 342 | 396 | 1.6 | 2.1 | |
SRP7050TA-680M | 68 | ±20 | 15 | 6 | 386 | 445 | 1.2 | 2.0 | |
