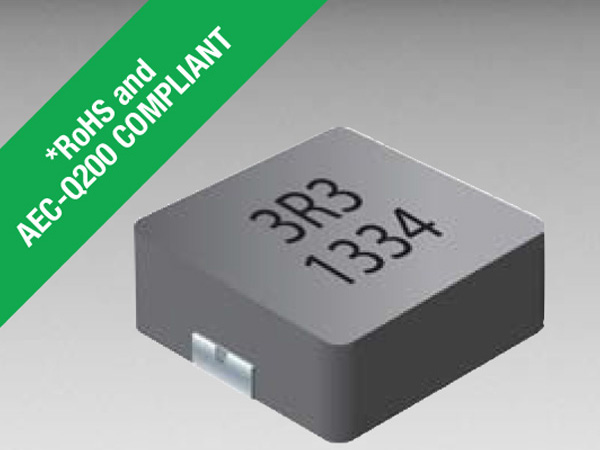

Bourns伯恩斯電感器SRP1265A系列
Bourns伯恩斯SRP1265A系列電感器主要材料為羰基粉末鐵芯，漆包銅電線，Sn表面處理端子
- 品牌： Bourns/伯恩斯
- 分類： 貼片電感器
- 最大電壓： -
- 額定電流： -
Part No. | Inductance @1kHz/1V | Q Min. | SRF Typ. | DCR Typ. | DCR Max. | I rms | I sat | Terminal Type | |
L(μH) | Tol. % | @1kHz/1V | (MHz) | （mΩ） | （mΩ） | (A) | （A） | ||
SRP1265A-R15M | 0.15 | 20 | 10 | 210 | 0.49 | 0.6 | 55 | 118 | Non- Lead Fream |
SRP1265A-R22M | 0.22 | 20 | 10 | 130 | 0.49 | 0.6 | 53 | 112 | |
SRP1265A-R33M | 0.33 | 20 | 10 | 90 | 0.65 | 0.8 | 46 | 68 | |
SRP1265A-R36M | 0.36 | 20 | 10 | 80 | 0.70 | 0.9 | 45 | 66 | |
SRP1265A-R47M | 0.47 | 20 | 10 | 75 | 0.90 | 1.2 | 41 | 63 | |
SRP1265A-R56M | 0.56 | 20 | 10 | 65 | 1.05 | 1.2 | 37 | 58 | |
SRP1265A-R68M | 0.68 | 20 | 30 | 50 | 1.3 | 1.5 | 35 | 55 | Lead Fream |
SRP1265A-R82M | 0.82 | 20 | 30 | 43 | 1.6 | 1.9 | 33 | 50 | |
SRP1265A-1R0M | 1.0 | 20 | 30 | 34 | 2.0 | 2.3 | 30 | 48 | |
SRP1265A-1R5M | 1.5 | 20 | 30 | 30 | 2.7 | 3.0 | 27 | 45 | |
SRP1265A-1R8M | 1.8 | 20 | 20 | 30 | 3.6 | 4.0 | 24 | 40 | |
SRP1265A-2R2M | 2.2 | 20 | 20 | 23 | 3.8 | 4.2 | 22 | 40 | |
SRP1265A-3R3M | 3.3 | 20 | 20 | 20 | 5.7 | 6.8 | 18 | 30 | |
SRP1265A-4R7M | 4.7 | 20 | 20 | 17 | 7.0 | 8.4 | 13.5 | 28 | |
SRP1265A-5R6M | 5.6 | 20 | 20 | 15 | 8.5 | 10.0 | 12.5 | 23 | |
SRP1265A-6R0M | 6.0 | 20 | 20 | 14 | 8.5 | 10.0 | 12.0 | 23 | |
SRP1265A-6R8M | 6.8 | 20 | 20 | 13 | 9.5 | 11.5 | 11.5 | 18 | |
SRP1265A-8R2M | 8.2 | 20 | 20 | 11 | 12.0 | 15.5 | 10.5 | 16 | |
SRP1265A-100M | 10 | 20 | 20 | 10 | 13.2 | 16.5 | 10 | 15.5 | |
SRP1265A-150M | 15 | 20 | 20 | 7 | 23.2 | 28.0 | 9 | 12.5 | |
SRP1265A-220M | 22 | 20 | 20 | 6 | 32.5 | 37.0 | 9 | 12 | |
SRP1265A-330M | 33 | 20 | 20 | 5 | 48.0 | 58.0 | 8 | 11 | |
SRP1265A-470M | 47 | 20 | 20 | 4 | 76.0 | 90.0 | 6.5 | 9.5 | |
