Bourns伯恩斯MF-USMF系列自恢復保險絲
Bourns伯恩斯MF-NSMF系列自恢復保險絲屬表面貼裝保險絲，封裝尺寸為1210，符合AEC-Q200 Rev-D汽車應用中無源部件的應力測試鑒定，
快速跳閘可復位電路保護。
- 品牌： 伯恩斯/Bourns
- 分類： SMD自恢復保險絲
- 最大電壓： 6~30V
- 額定電流： 0.05A~2A
- 封裝： 1210封裝
Bourns伯恩斯MF-USMF系列規格書
Model | Vmax. (V) | Imax. (A) | Ihold at23℃ (A) | Itrip @23℃ (A) | Pd typ. (W) | Maximum Time To Trip @23℃ | Resistance @23℃ | ||
Current (A) | Time (Sec.) | Rimin. (Ω) | R1max. (Ω) | ||||||
MF-USMF005 | 30 | 10 | 0.05 | 0.15 | 0.6 | 0.25 | 1.50 | 2.80 | 50 |
MF-USMF010 | 30 | 10 | 0.10 | 0.30 | 0.6 | 0.50 | 0.60 | 0.80 | 15 |
MF-USMF020 | 30 | 10 | 0.20 | 0.40 | 0.6 | 8.00 | 0.02 | 0.40 | 5 |
MF-USMF035 | 13.2 | 40 | 0.35 | 0.75 | 0.6 | 8.00 | 0.20 | 0.20 | 1.3 |
MF-USMF050 | 6 | 40 | 0.50 | 1.00 | 0.6 | 8.00 | 0.10 | 0.18 | 0.9 |
MF-USMF075 | 6 | 40 | 0.75 | 1.50 | 0.6 | 8.00 | 0.10 | 0.07 | 0.45 |
MF-USMF110 | 6 | 40 | 1.10 | 2.20 | 0.6 | 5.00 | 1.00 | 0.05 | 0.21 |
MF-USMF150 | 6 | 40 | 1.50 | 3.00 | 0.6 | 5.00 | 5.00 | 0.03 | 0.11 |
MF-USMF175 | 6 | 40 | 1.75 | 3.50 | 0.7 | 8.00 | 1.00 | 0.02 | 0.09 |
MF-USMF175X | 6 | 40 | 1.75 | 3.50 | 0.7 | 8.00 | 1.00 | 0.02 | 0.08 |
MF-USMF200X | 6 | 40 | 2.00 | 4.00 | 0.7 | 8.00 | 1.00 | 0.02 | 0.08 |

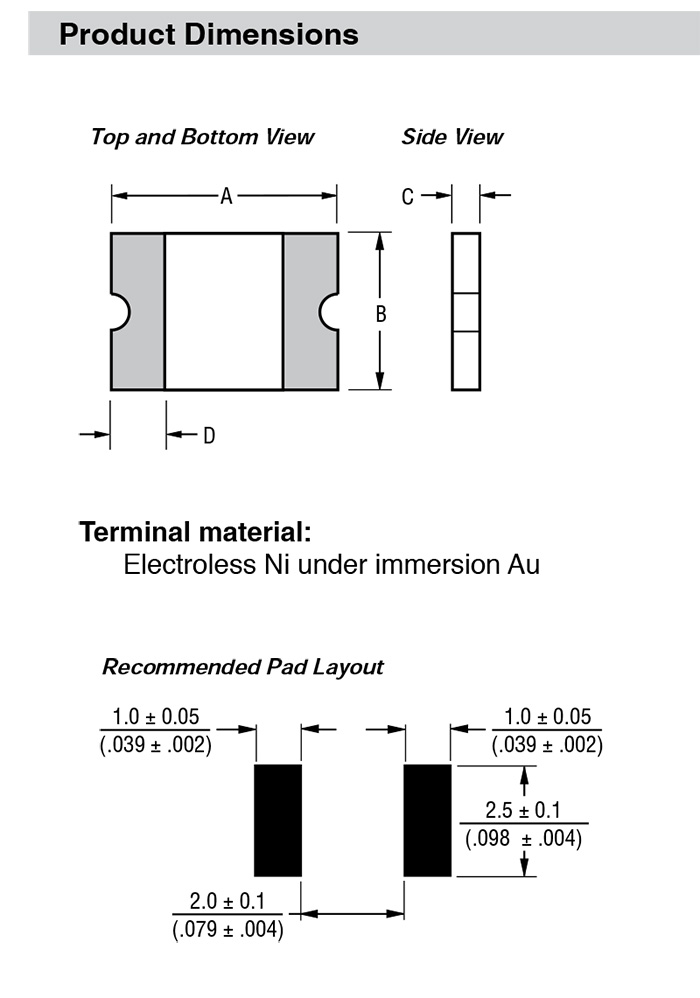

Model | A | B | C | D | |||
Min. | Max. | Min. | Max. | Min. | Max. | Min. | |
| MF-USMF005 | 3/0.118 | 3.43/0.135 | 2.35/0.093 | 2.8/0.11 | 0.8/0.031 | 1.1/0.043 | 0.3/0.012 |
| MF-USMF010 | |||||||
| MF-USMF020 | |||||||
| MF-USMF035 | 0.55/0.022 | 0.85/0.033 | |||||
| MF-USMF050 | |||||||
| MF-USMF075 | |||||||
| MF-USMF110 | |||||||
| MF-USMF150 | 0.4/0.016 | ||||||
| MF-USMF175 | |||||||
| MF-USMF175X | |||||||
| MF-USMF200X | |||||||
DIMENSIONS:MM/(INCHES)
